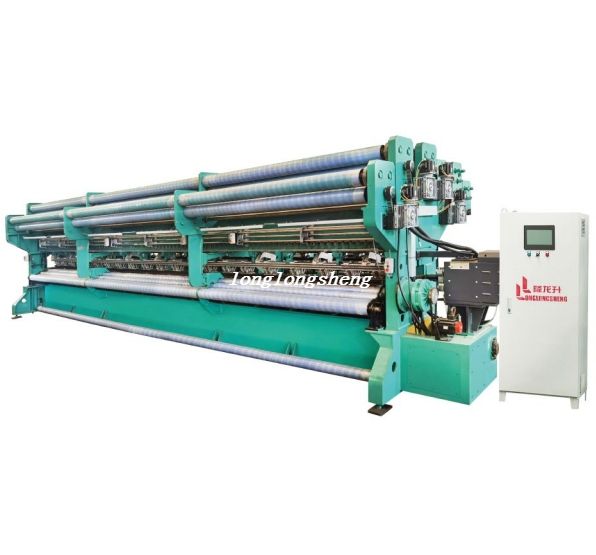

Shorter stroke Warp Knitting Machine HSGE2320L

Video of Shorter Stroke Warp Knitting Machine HSGE2320L

Description of Shorter stroke Warp Knitting Machine HSGE2320L

Net example：

Product General Specifications of Shorter stroke Warp Knitting Machine HSGE2320L

Machine Model	Machine Size(LxWxH)(mm)	Machine Weight(Kg)	Power Supply (kw)		Machine Speed(rpm)
			Main Motor	Inching Motor
HSGE2320-180L	6300x2810x2770	8000	7.5	0.75	200-700
HSGE2320-260L	8200x2810x2770	12000	7.5	1.0	200-700
HSGE2320-338L	10200x2810x2870	16000	11	1.0	200-700

Technical Data of Shorter stroke Warp Knitting Machine HSGE2320L

Working Needles	Latch needle
Machine Guage	E6,E9,E12,E14,E16,E20,E22
Nominal width	150"(3810mm),160"(4064mm),180"(4572mm),260"(6604mm)
Number of Guide Bars	2-4

Company Introduction

Changzhou Longlongsheng Warp Knitting Machinery Co., Ltd.

Changzhou Longlongsheng Warp Knitting Machinery Co., Ltd is one of the leading textile Machinery Manufacturer. We mainly handles in the research and manufacture of knitting machine line especially warp knitting machine. There are more than 50 types knitting machine. The production by machines are widely used in many field such as Agro filed, sports filed, Aquaculture and farming filed, family filed, safety field, environmental protection, Industrial field.

Since 1994, we develop more model for knitting machines. These years we sell about 7000 sets machines including SGE, HSGE, GE, CT, ZR series. To foreign market, over 1000 sets have been installed around the world.

These countries span more regions globe as below:

Asia: China, Vietnam, Taiwan, India, Korea, Japan, Indonesia, Pakistan, Thailand, Burma, Cambodia, UZ, North Korea

Africa: South Africa, Tunisia, Zimbabwe, Tanzania, Nigeria, Egypt

Europe: Spain, Greece, Russia, Germany, Turkey

America: Brazil, Argentina

We insist on the company motto "success comes from focus, persistence to create miracles", with "survive by qualty,develop by technology" of the quality policy. In addition we got ISO9001 quality management system and the EuropeanUnion "CE" safety management system certification and so on. We always provide the reasonable and satisfied warp knitingmachine also the overall solution. High-speed, inteligent come to be a standard function for product.

We have excellent processing CNC equipment and strong technology strength. Also obtain many technical innovation and invention patents. We are awarded high-tech company. The other one “LONGLONGSHENG” brand is famous trademark. We gain good so bigger market for knitting machine based on good price, high quality and consummate service. To be best, to be helpful, LONGLONGSHENG will grow up with you.

Our factory also has an experimental network factory, which can provide users with sample making or design products according to their requirements, and provide technical consultation and guidance for users. Welcome to sample and process materials.

Our advantages：

Our company has been committed to developing and manufacturing warp knitting machines for various mesh fabrics since its establishment very popular among customers and received the best feedback from them.

The advantages of the warp knitting  machine are as follows:

Good price:

We provide you high quality warp knitting machine with good price ,help you to get a great start of your net business.

More experience：

We begin to manufacture warp knitting machine in 1994. Also we have net factory for training workers and provide key-key line solution for customers.

Leading provider：

We research and develop machines for mesh fabric and net many years.

Quality service：

We match your want and help you execute you individual production process with as few unexpected interruptions as possible.

Low maintenance cost:

Only replace vulnerable parts within 5 years.

High intelligence:

Easy to operate, labor-saving, and better fabric quality.

Customized services:

start from customers' requirement, all round service for mixing different feeding with beam, roller, slitter etc.

Your trust, my pursuit.

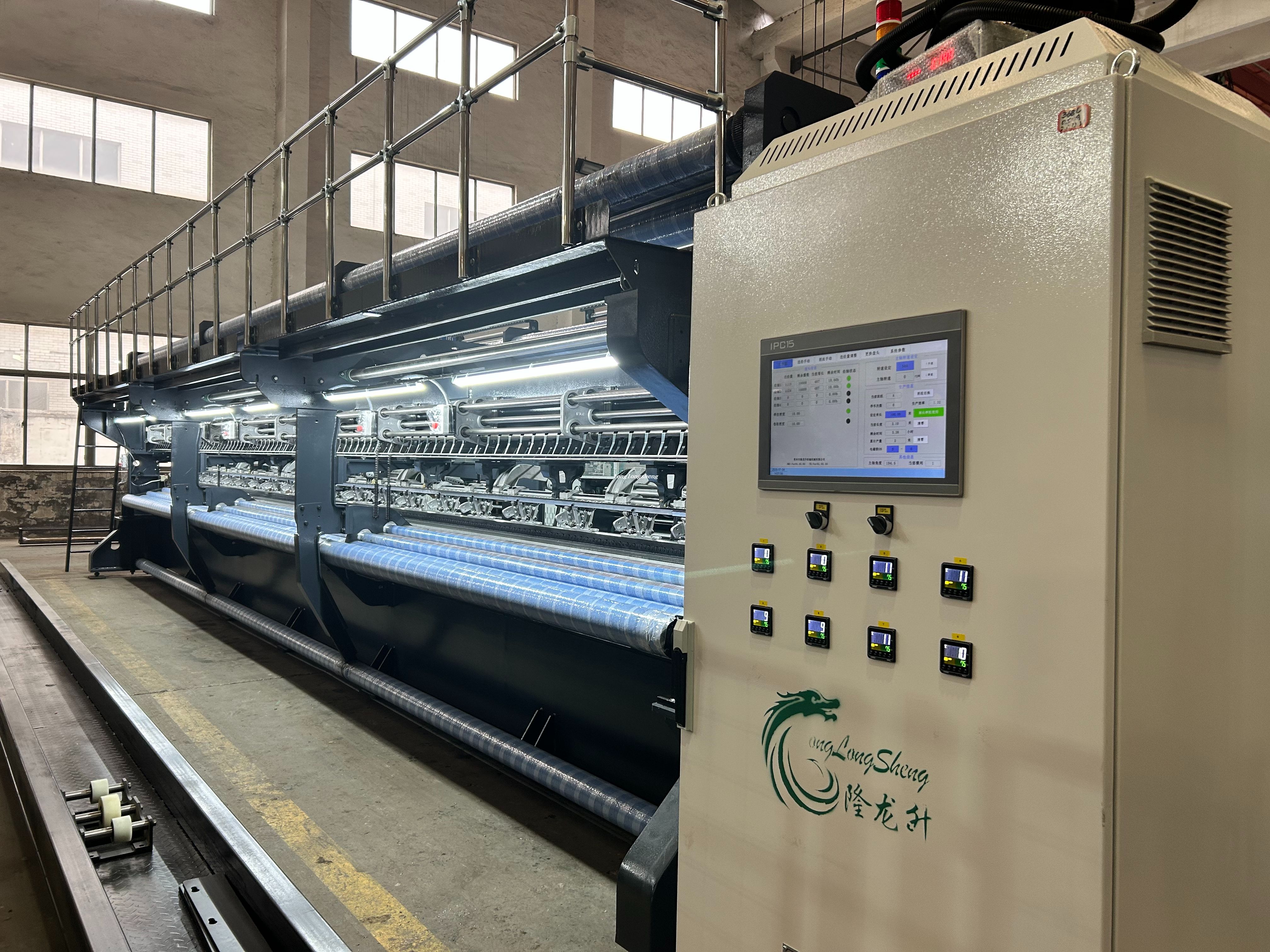

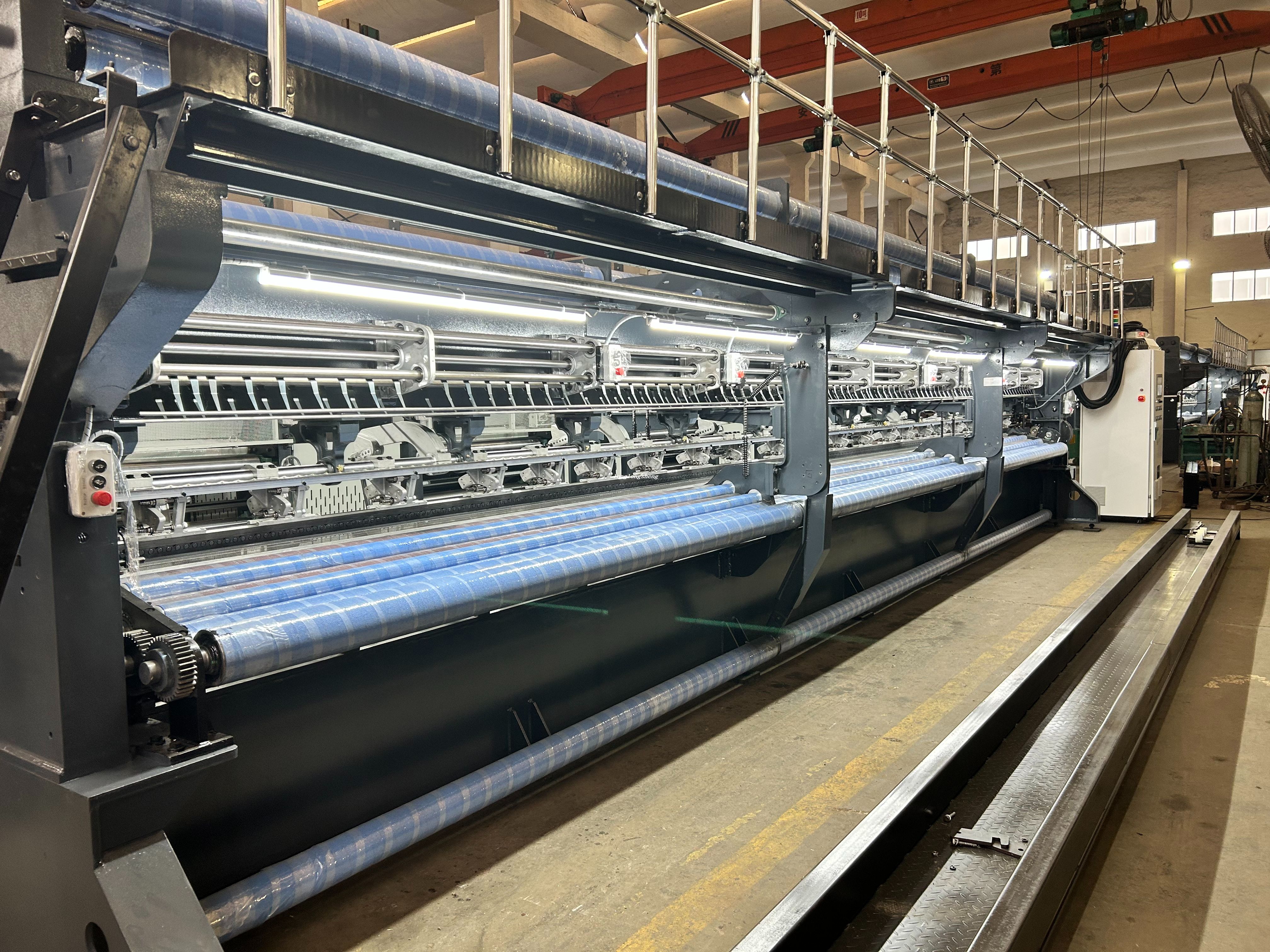

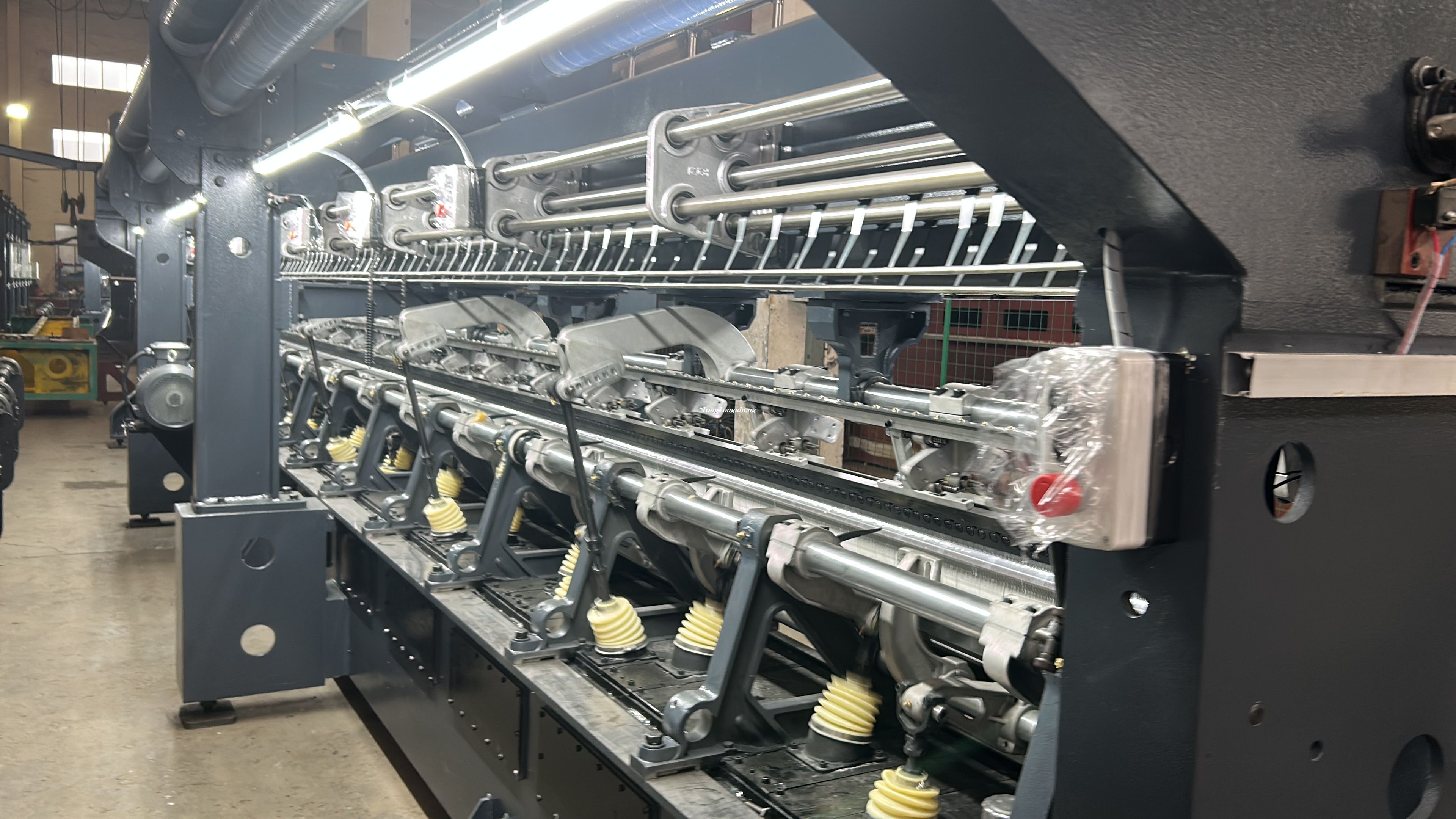

Manufacturing Capacity

Exhibition History

Customer interviews

Certifications

Service

Pictures of delivery:

FAQ

Q1、When can I get the price?

We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please tell us in your email so that we will regard you inquiry priority.

Q2、Could I have prices of your products?

Welcome. Pls feel free to send us an email here. You will get our reply in 24 hours.

Q3、Can I get a lower price if I order large quantities?

Yes, cheaper prices with more bigger quantity orders.

Q4、 Do you inspect the finished products?

Yes, each step of production and finished products will be came out inspection by QC department before shipping.

Q5、 What about the lead time for the mass production?

Honestly, it depends on the order quantity and the season you place the order.

Q6、 Do you have a production line solution？

 Yes, we can provide key-key line solution for customers.
