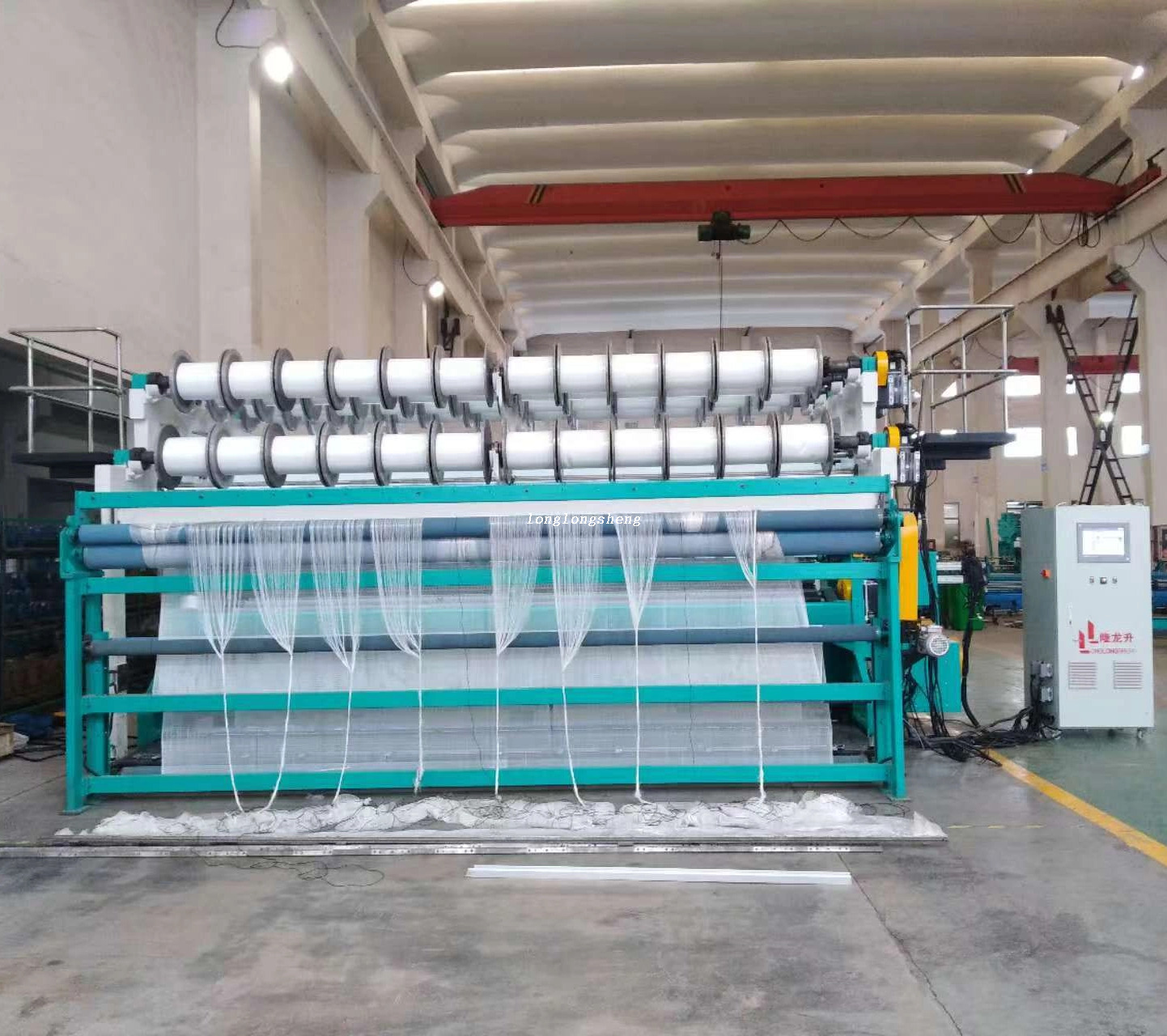

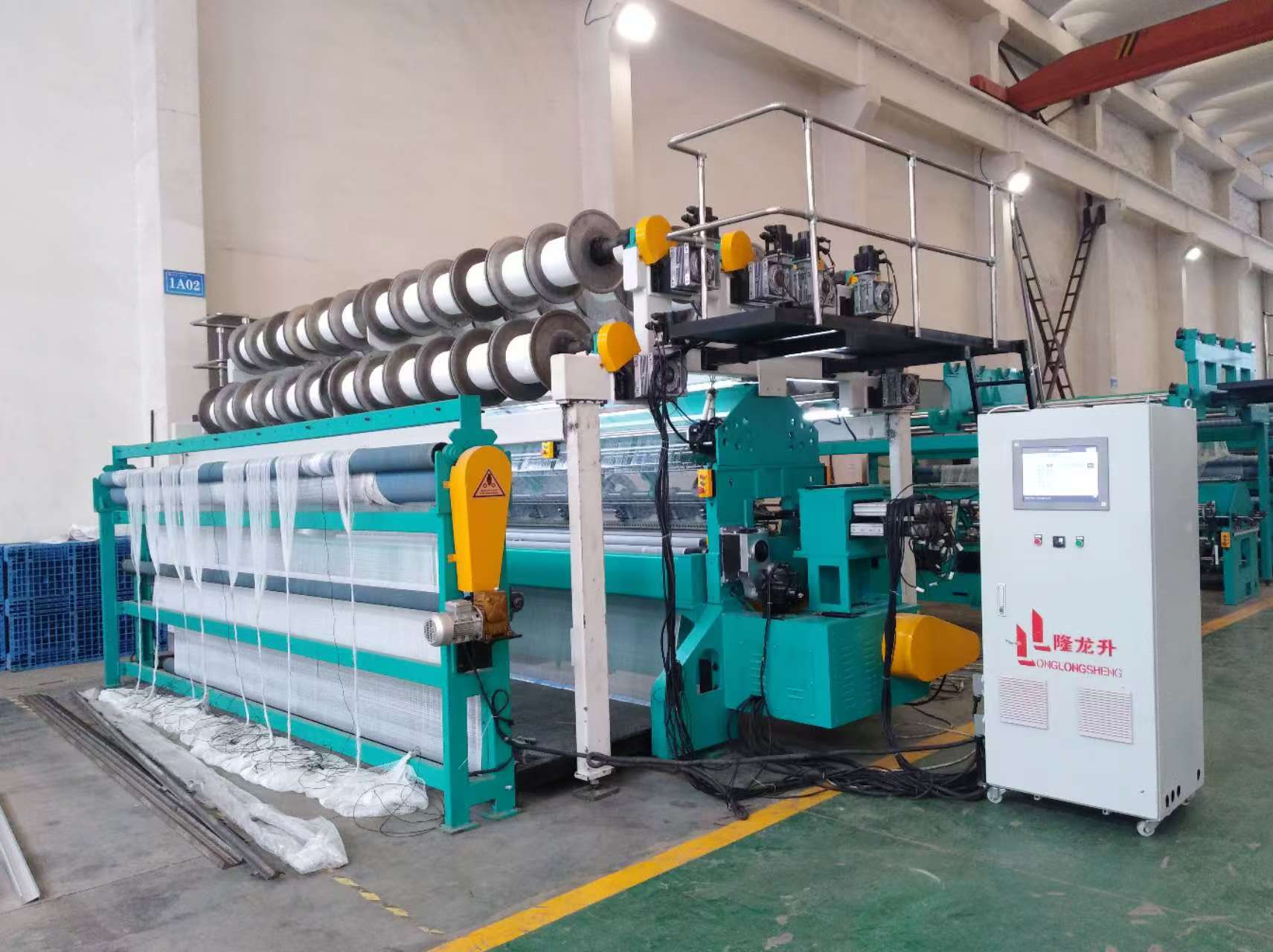

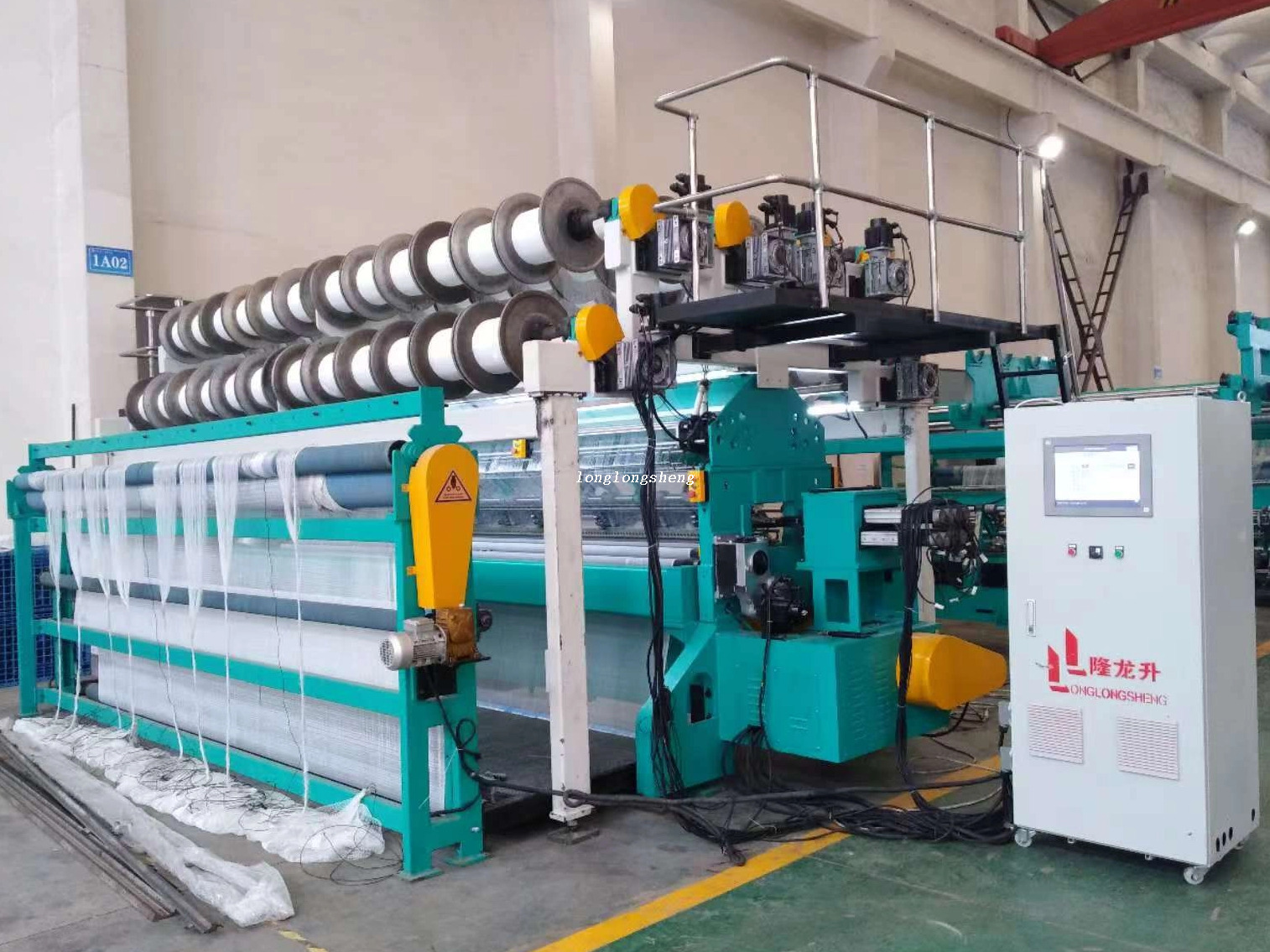

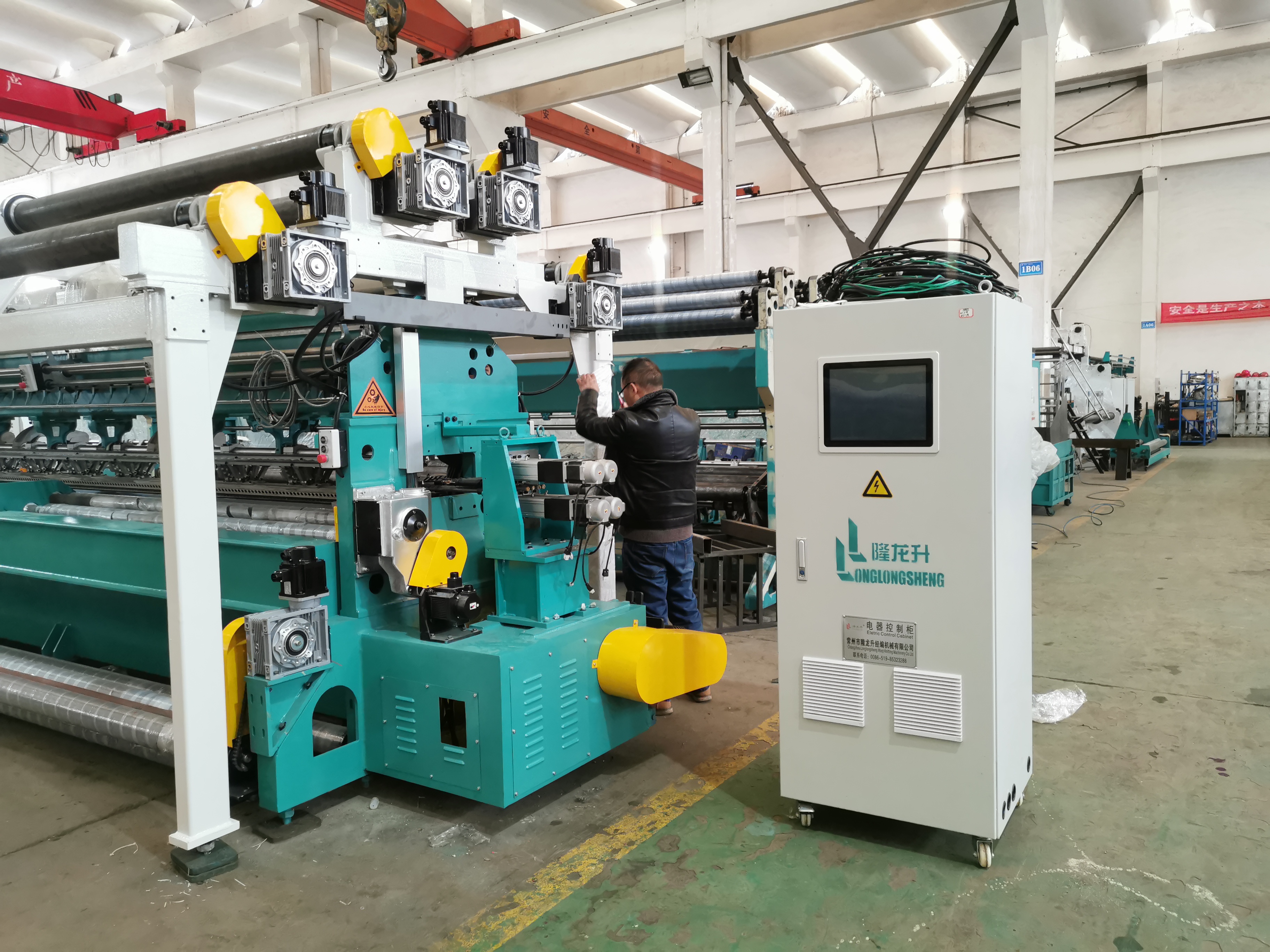

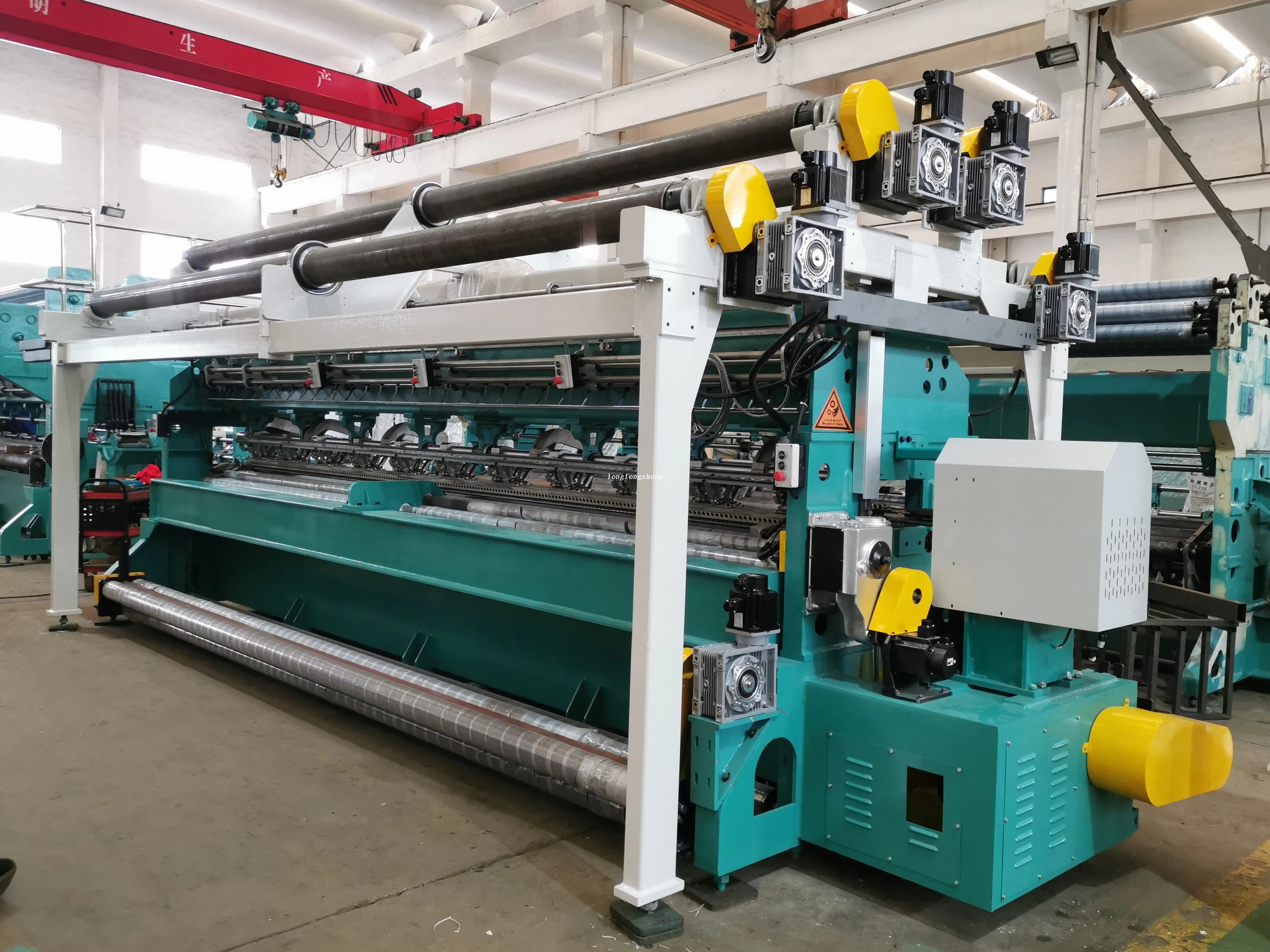

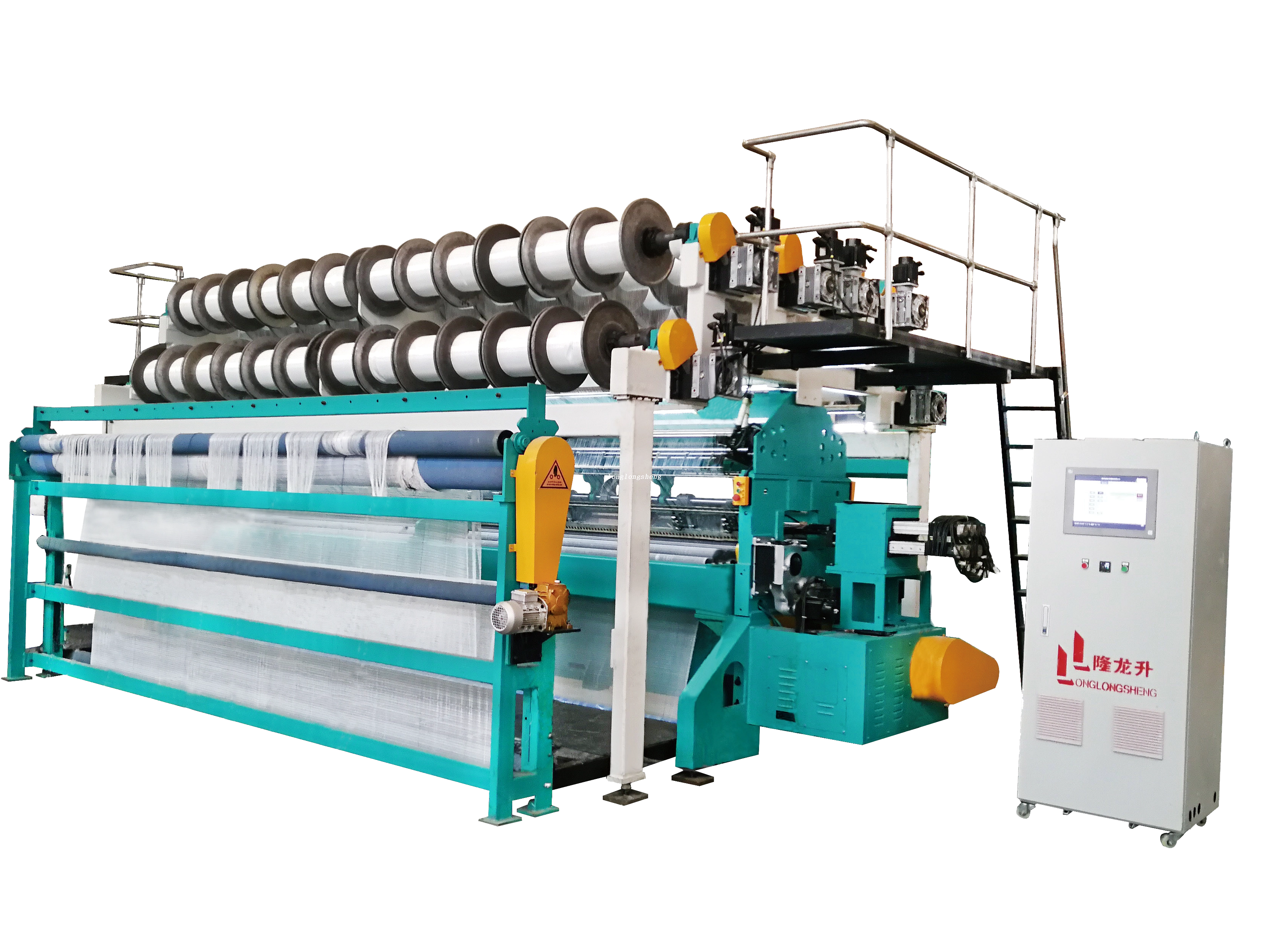

This high speed warp knitting machine is used to produce mesh fabric, mosquito net, safety net, sports net, trash net, cage net, fishing net.
It is equipped with the oiled eccentric gearing to drive and adopted electronic let-off, electronic take-up. Also can select electric shogging.
HSGE2320-8
longlongsheng
Compound needles or latch needles
E6,E9,E12,E14,E16
152"(3860mm)，182"(4622mm)，260"(6604mm)
6-8
Electronic control
1-6mm
Electronic control
2 rollers with friction drive, separatly-standing
450-600rpm
5500x2500x2500 / 6300x2500x2500 / 8200x3600x2900 (LxW xH)(mm)
6000 / 8000 / 12000 (Kg)
Description of High Speed Warp Knitting Machine
The mesh size produced is stable, the mesh structure is compact, and the speed is fast, which can quickly produce a large number of fishing net products. The high efficiency of high-speed warp knitting machines can reduce production time and labor costs.
Mosquito net
Fishing net
Fishing net
Machine Model | Machine Size(LxWxH)(mm) | Machine Weight(Kg) | Power Supply (kw) | Machine Speed(rpm) | |
Main Motor | Inching Motor | ||||
| HSGE2320-8-152" | 5500x2500x2500 | 6000 | 5.5 | 0.75 | 450-600 |
| HSGE2320-8-182" | 6300x2500x2500 | 8000 | 7.5 | 0.75 | 450-600 |
| HSGE2320-8-260" | 8200x3600x2900 | 12000 | 9 | 1.5 | 450-600 |
Working Needles | Compound needles or latch needles |
Machine Guage | E6, E9, E12, E14, E16 |
Working width | 152"(3860mm), 182"(4622mm), 260"(6604mm) |
Number of Guide Bar | 6-8 |
Pattern Device | Electronic shogging (select) |
Changzhou Longlongsheng Warp Knitting Machinery Co., Ltd.
Changzhou Longlongsheng Warp Knitting Machinery Co., Ltd is one of the leading textile Machinery Manufacturer. We mainly handles in the research and manufacture of knitting machine line especially warp knitting machine. There are more than 50 types knitting machine. The production by machines are widely used in many field such as Agro filed, sports filed, Aquaculture and farming filed, family filed, safety field, environmental protection, industrial field.
Since 1994, we develop more model for knitting machines. These years we sell about 7000 sets machines including SGE, HSGE, GE, CT, ZR series. To foreign market, over 1000 sets have been installed around the world.
Asia: China, Vietnam, Taiwan, India, Korea, Japan, Indonesia, Pakistan, Thailand, Burma, Cambodia, UZ, North Korea
Africa: South Africa, Tunisia, Zimbabwe, Tanzania, Nigeria, Egypt
Europe: Spain, Greece, Russia, Germany, Turkey
America: Brazil, Argentina
We insist on the company motto "success comes from focus, persistence to create miracles", with "survive by qualty, develop by technology" of the quality policy. In addition we got ISO9001 quality management system and the EuropeanUnion "CE" safety management system certification and so on. We always provide the reasonable and satisfied warp knitingmachine also the overall solution. High-speed, inteligent come to be a standard function for product.
We have excellent processing CNC equipment and strong technology strength. Also obtain many technical innovation and invention patents. We are awarded high-tech company. The other one "LONGLONGSHENG" brand is famous trademark. We gain good so bigger market for knitting machine based on good price, high quality and consummate service. To be best, to be helpful, LONGLONGSHENG will grow up with you.
Our factory also has an experimental network factory, which can provide users with sample making or design products according to their requirements, and provide technical consultation and guidance for users. Welcome to sample and process materials.
Our company has been committed to developing and manufacturing warp knitting machines for various mesh fabrics since its establishment very popular among customers and received the best feedback from them.
The advantages of the warp knitting machine are as follows:
We provide you high quality warp knitting machine with good price, help you to get a great start of your net business.
We begin to manufacture warp knitting machine in 1994. Also we have net factory for training workers and provide key-key line solution for customers.
We research and develop machines for mesh fabric and net many years.
We match your want and help you execute you individual production process with as few unexpected interruptions as possible.
Only replace vulnerable parts within 5 years.
Easy to operate, labor-saving, and better fabric quality.
Start from customers' requirement, all round service for mixing different feeding with beam, roller, slitter etc.
Your trust, my pursuit.
Manufacturing Capacity
Customer interviews
Certifications
Pictures of delivery:
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please tell us in your email so that we will regard you inquiry priority.
Welcome. Pls feel free to send us an email here. You will get our reply in 24 hours.
Yes, cheaper prices with more bigger quantity orders.
Yes, each step of production and finished products will be came out inspection by QC department before shipping.
Honestly, it depends on the order quantity and the season you place the order.
Yes,we can provide key-key line solution for customers.
