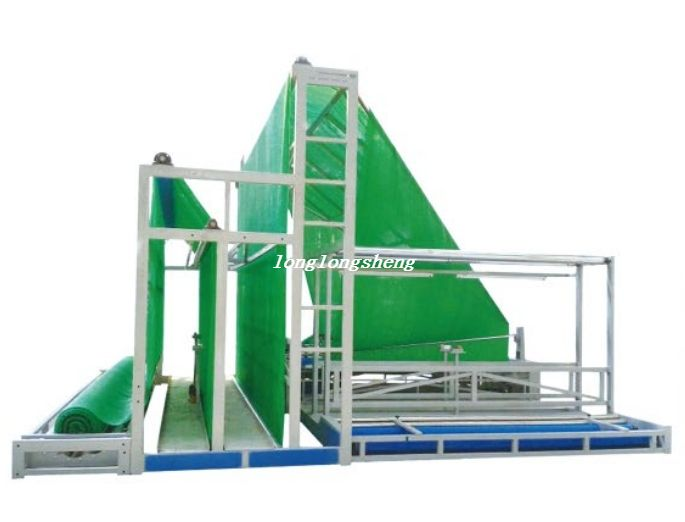

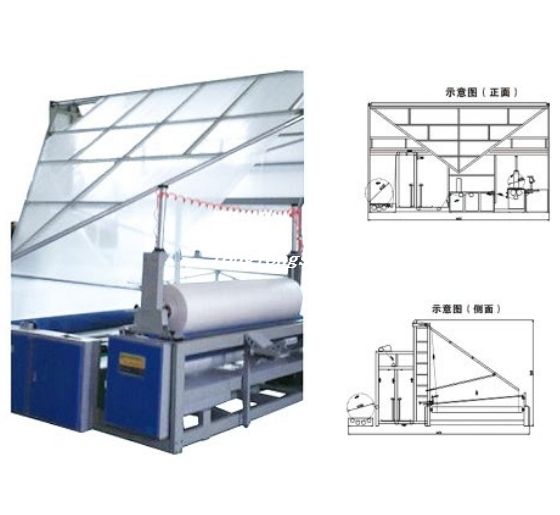

Purpose and feature of the Sunshade Net Folding And Yarn Inspecting Machine

LS541KR is extra-width fabric folding and rolling machine. It is mainly used in finishingworkshop of sunshade net factory and plastic factory for checking and  mending of finishingmesh fabrics. ln order to get the best transport packaging:

1. The width of fabric from 3 meters to 6.

2. Meters can be folded and winded from big rolls to small.2. The width of fabric from 1meter to 3 meters can be full-width inspected and winded frombig rolls to small.

◆ Frequency converter controls inspecting and rolling speed; controlled by multi-frequency converters, tension synchronously adjustable, Driven by reducer.

◆ Photoelectric sensor controls fabric auto edge-alignment; Edge-alignment for foldingdriven by Hydro cylinder. Edge-alignment for winding - frequency converter controlsreducer drive.

◆ Cylinder controls the tightness of continuous fabric Rolls. Rolls without paper tube isavailable.

◆ Using domestic advanced meter counter (Amends, fixed length, measuring andaccumulation functions, it can also display the working speed)

◆ Optional electronic sensor weighting Device - Record the weight of finished rolls.

Product Overview

This net folding and rolling machine is special post‑finishing equipment matched with Raschel warp knitting machines. After mesh fabrics come out from warp knitting machines, this unit completes fabric unfolding, edge‑aligning, folding, meter‑counting and final rolling. It is widely used for agricultural shade net, bale net, safety protective net and other warp‑knitted net products. The machine helps convert large‑diameter raw rolls from warp knitting machines into neat small finished rolls, convenient for storage, transportation and final sales. It can also perform simple fabric inspection, finding broken threads or mesh defects before packing. As an important downstream machine of net fabric production line, it greatly reduces manual folding labor cost and improves finished‑roll appearance consistency.

Main Features & Advantages

• Automatic photoelectric edge‑alignment system to keep net fabric neat without offset

• Precise digital meter‑counter for accurate fabric length measurement

• Frequency‑conversion speed adjustment, running speed adjustable according to different net materials

• Adjustable rolling tension to produce tight or soft finished net rolls

• Heavy‑duty steel frame, stable long‑time continuous operation for factory mass production

• Simple operation, easy maintenance, low failure rate

• Perfect matching with warp knitting machine to complete full agricultural net production line

Technical Data of the machine

Model	LS541
Standards	640
Fabric width	3000-6200mm
Range of fabric roll diameter	350-1200mm (可选 Optional)
Max. Diameter of fabric-feeding rolls	1000mm
Working speed	0-60m/min (无级 Stepless speed regulation)
Error of edge-akignment	≤10mm
Range of fabric measuring	0~9999.9m
Max.error of meter counting	0.5%
Dimension (L*W*H)	6600×5995×3940mm
Weight	4800Kgs
Electric specs, Power	Three phase four wire system 380V AC, 50Hz, 6KW
Remarks: Other standards can be designed according to customer requirements.

Company Introduction

Changzhou Longlongsheng Warp Knitting Machinery Co., Ltd.

Changzhou Longlongsheng Warp Knitting Machinery Co., Ltd is one of the leading textile Machinery Manufacturer. We mainly handles in the research and manufacture of knitting machine line especially warp knitting machine . There are more than 50 types knitting machine.The production by machines are widely used in many field such as Agro filed, sports filed, Aquaculture and farming filed,family filed ,safety field ,environmental protection ,Industrial field.

Since 1994, we develop more model for knitting machines. These years we sell about 7000 sets machines including SGE,HSGE,GE, CT,ZR series . To foreign market ,over 1000 sets have been installed around the world.

These countries span more regions globe as below:

Asia: China, Vietnam, Taiwan, India, Korea, Japan, Indonesia, Pakistan, Thailand, Burma, Cambodia, UZ, North Korea

Africa: South Africa, Tunisia, Zimbabwe, Tanzania, Nigeria, Egypt

Europe: Spain, Greece, Russia, Germany, Turkey

America:Brazil, Argentina

We insist on the company motto "success comes from focus, persistence to create miracles", with "survive by qualty,develop by technology" of the quality policy. in addition we got 1s0g001 quality management system and the EuropeanUnion "CE" safety management system certification and so on. We always provide the reasonable and satisfied warp knitingmachine also the overall solution. High-speed, inteligent come to be a standard function for product.

We have excellent processing CNC equipment and strong technology strength .Also obtain many technical innovation and invention patents. We are awarded high-tech company . The other one “LONGLONGSHENG” brand is famous trademark.  We gain good so bigger market for knitting machine based on good price , high quality and consummate service.To be best, to be helpful, LONGLONGSHENG will grow up with you.

Our factory also has an experimental network factory, which can provide users with sample making or design products according to their requirements, and provide technical consultation and guidance for users. Welcome to sample and process materials.

Our advantages：

Our company has been committed to developing and manufacturing warp knitting machines for various mesh fabrics since its establishment very popular among customers and received the best feedback from them.

The advantages of the warp knitting  machine are as follows:

good price:

We provide you high quality warp knitting machine with good price ,help you to get a great start of your net business.

More experience：

We begin to manufacture warp knitting machine in 1994 .Also we have net factory for training workers and provide key-key line solution for customers.

Leading provider：

We research and develop machines for mesh fabric and net many years.

Quality service：

We match your want and help you execute you individual production process with as few unexpected interruptions as possible.

Low maintenance cost:

Only replace vulnerable parts within 5 years.

High intelligence:

easy to operate, labor-saving, and better fabric quality.

Customized services:

start from customers' requirement ,all round service for mixing different feeding with  beam ,roller ,slitter etc.

Your trust, my pursuit.

Manufacturing Capacity

Exhibition History

Customer interviews

Certifications

Service

Pictures of delivery:

FAQ

Q1、When can I get the price?

We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please tell us in your email so that we will regard you inquiry priority.

Q2、Could I have prices of your products?

Welcome. Pls feel free to send us an email here. You will get our reply in 24 hours.

Q3、Can I get a lower price if I order large quantities?

Yes, cheaper prices with more bigger quantity orders.

Q4、 Do you inspect the finished products?

Yes, each step of production and finished products will be came out inspection by QC department before shipping.

Q5、 What about the lead time for the mass production?

Honestly, it depends on the order quantity and the season you place the order.

Q6、 Do you have a production line solution？

 Yes,we can provide key-key line solution for customers.

Q7、What is net folding machine used for?

It is post‑processing equipment for warp‑knitted net fabrics. It folds, aligns edges, counts meters and rewinds large net rolls into neat small finished rolls for storage and delivery.

Q8、Can I customize machine working width?

Yes. We can adjust max processing width according to your actual net fabric width requirement.

Q9、Can it inspect fabric quality during folding?

Operators can visually check mesh breakage or defects while net passes through the machine, realizing simple on‑line fabric inspection before final packing.
