beam
longlongsheng

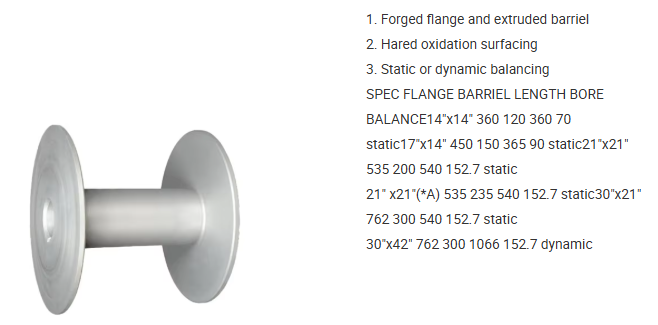

21*21,30*21,30*42,17*14
21'' or 30'' or 17'' （sectional beams )

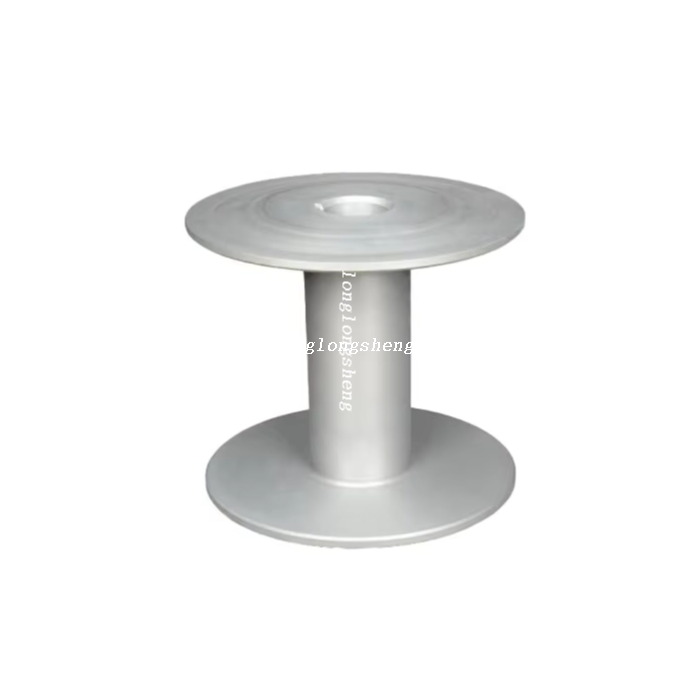

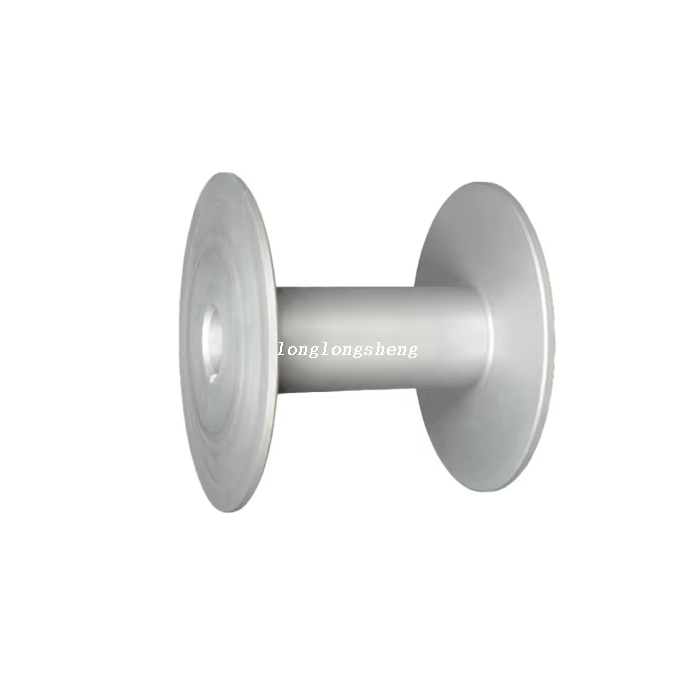

The warp beam, also known as warp knitting beam or reel head, is the core supporting and yarn feeding accessory for all types of warp knitting machines, including Raschel warp knitting machines and Tricot warp knitting machines. As a key spare part for warp knitting production, it stores warped yarns and provides stable, uniform tension yarn feeding during high-speed machine operation, directly affecting fabric density, flatness, stability and finished product quality.
Our high-precision warp knitting warp beams are specially manufactured for agricultural net machines, fishing net machines, sports net machines and shoe mesh fabric warp knitting equipment. With strict dynamic balance treatment, high-strength steel structure and anti-rust surface technology, our warp beams effectively reduce yarn breakage, avoid mesh unevenness and improve overall production efficiency.
Finished warp beams undergo professional dynamic balance calibration to ensure stable operation under high-speed warp knitting conditions. Low vibration effectively reduces machine wear, avoids yarn jumping and minimizes broken yarn rates during continuous mass production.
This structure is made of high-quality materials and is formed through overall welding and precise CNC machining. The warp beam has excellent compressive strength, is not prone to deformation, and has a long service life. It can support heavy-duty warp knitting machines to operate continuously.
Precision flange design and smooth barrel surface ensure even yarn arrangement and consistent unwinding tension. It greatly improves the flatness of agricultural nets, fishing nets, sports protective nets and shoe mesh fabrics, reducing defective rates.
The surface adopts advanced anti-rust painting and polishing technology, resisting oxidation, moisture and long-term industrial wear. Suitable for harsh factory environments and long-term repetitive use.
We support customized working width, flange diameter, shaft hole size and load capacity. Fully compatible with single needle bar warp knitting machine, double needle bar warp knitting machine, Raschel machine and Tricot machine models.

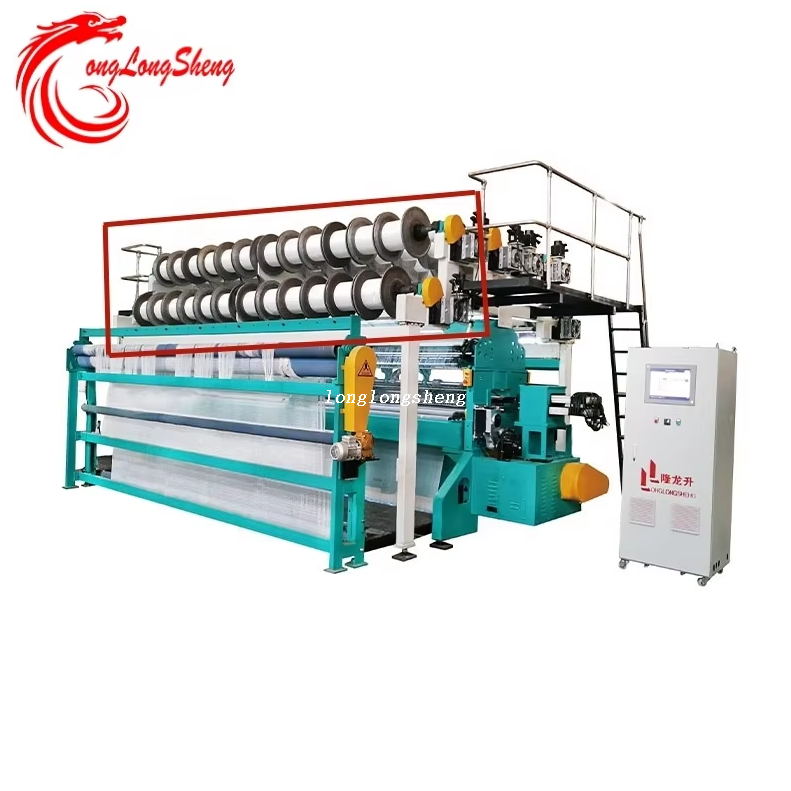

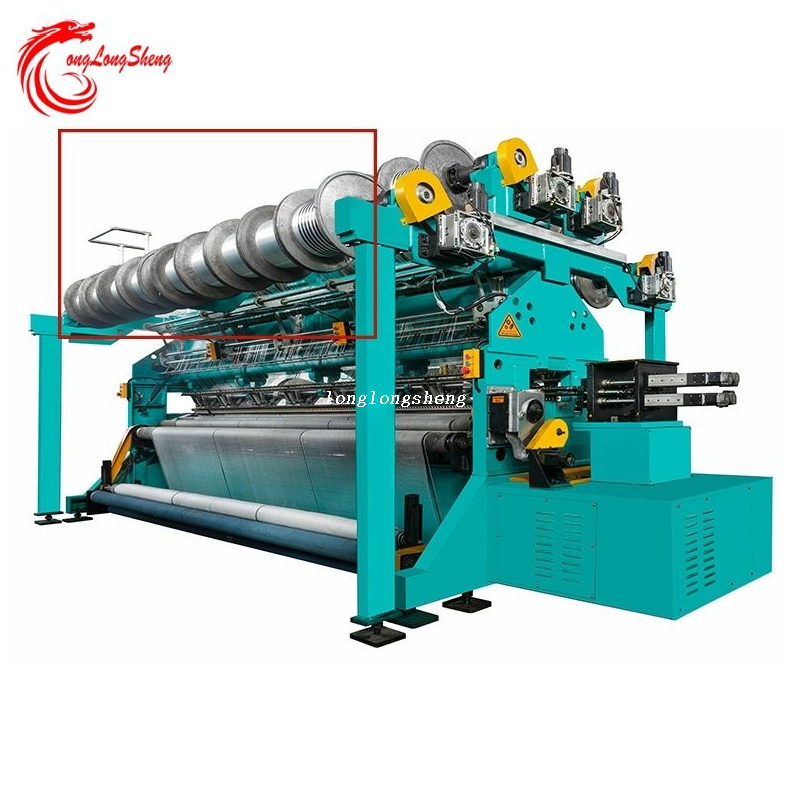

Our warp knitting warp beams are widely matched with full-series warp knitting machines for multiple industries:
Agricultural net production: shade net, anti-hail net, bird net, greenhouse protection net
Fishery & aquaculture net production: knotless fishing net, shrimp cage net, fish cage net
Sports net production: court protective net, training safety net, fence net
Shoe fabric & textile mesh production: sports shoe mesh, 3D breathable mesh, elastic textile fabric
Material: High-strength material
Processing method: Precision processing, overall welding, dynamic balance testing
Surface treatment: Rust-proof painting, smooth polishing
Applicable machines: Raschel warp knitting machines, Tricot warp knitting machines, single/double needle bar looms
Customized dimensions: Supports customization of width, flange diameter and shaft diameter
Performance features: Low noise, low vibration, stable yarn feeding, durable
A warp beam is a professional warp knitting accessory used to wind warp yarns and provide continuous stable yarn feeding for warp knitting machines. It is the core component that determines fabric stability and production smoothness.
High-precision dynamically balanced warp beams reduce vibration and yarn breakage, ensure uniform mesh and fabric tension, greatly improve finished product qualification rate and reduce production cost.
